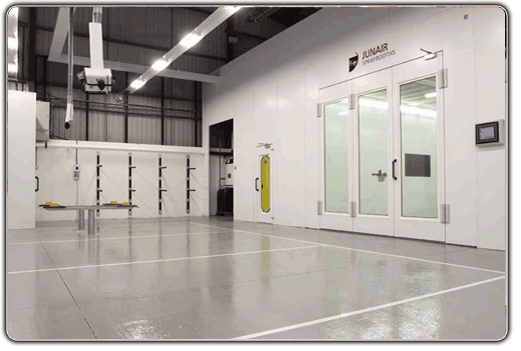

5 Series Spray Booth Oven
 |
The 5 Series spray booth oven is a highly specified production unit. Every feature of this spray booth has been engineered to be the best in its class. Combined with energy saving and production enhancing equipment the 5 Series spray booth oven delivers the highest quality paint finish at the lowest cost per unit. A LEVAC or EVAC fully extracted and balanced floor is incorporated into the 5 Series spray booth oven as standard. In combination with the full width, full length plenum, the downdraught airflow through this cabin is second to none. |
 |
 |
 |
 |
 |

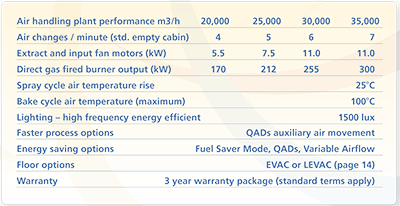

| Air handling plant performance (m3/h) | 20,000 | 25,000 | 30,000 | 35,000 |
| Air changes per minute (empty cabin) | 4 | 5 | 6 | 7 |
| Extract and input high efficiency fan motors (kW) | 5.5 | 7.5 | 11.0 | 11.0 |
| Direct gas fired burner output (kW) | 170 | 212 | 255 | 300 |
| Spray Cycle air temperature rise | 25°C | |||
| Bake cycle air temperature (maximum) | 100°C | |||
| Lighting – high frequency energy efficient | 1500 lux |
| Faster process options | QADs auxiliary air movement |
| Energy saving options | Fuel Saver Mode, QADs, Variable Airflow |
| Floor options | EVAC or LEVAC |
| Warranty | 3 year warranty package (standard terms apply) |
