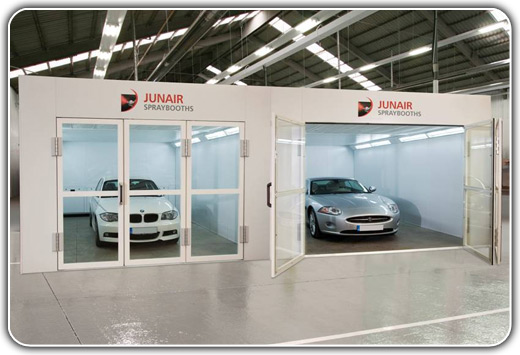

Primer Duo Spray Booth Oven
 |
The Junair Primer Duo spray booth oven has been developed to meet the increasing demand for additional priming facilities. This is a semi downdraught spray boothoven with rear extraction, requiring no floor excavation. The double width cabin shares a central air handling plant making this unit very cost effective. Two vehicles can be processed at the same time, sharing a common bake cycle which also dramatically reduces energy cost per unit. Small top coat repairs can also be completed in the Duo making it an extremely versatile addition for high throughput Body Shops |
 |
 |
 |
 |
 |
| Nominal Dimensions (mm) | 7000 long x 8000 wide x 2430 or 3030 high | |
| Air handling plant performance (m3/h) | 20,000 | |
| Extract and input high efficiency fan motors (kW) | 5.5 | |
| Direct gas fired burner output (kW) | 170 | |
| Spray Cycle air temperature rise | 25°C | |
| Bake cycle air temperature (maximum) | 100°C | |
| Lighting – high frequency energy efficient | 1000 lux |
| Faster process options | QAD’s auxiliary air movement |
| Energy saving options | Fuel Saver Mode, QADs, Variable Airflow |
| Warranty | 3 year warranty package (standard terms apply) |
